The Importance of Real-Time Refractometer Monitoring in Continuous Gummy Lines
In legacy gummy manufacturing, Quality Control (QC) was a reactive process. A technician would pull a sample of boiling syrup from a massive kettle, walk it over to a benchtop device, and manually test the sugar concentration (Brix). If the reading was off, they had to guess how much longer to boil the 1,000-liter vat.
By the time they tested it again, the active ingredients might have degraded from thermal stress, or the batch might have over-cooked, resulting in a rock-hard final product.
In modern, continuous gummy manufacturing, there is no time for manual benchtop testing. The slurry is moving through the pipes at hundreds of liters per hour. To guarantee perfection at this speed, elite Contract Manufacturing Organizations (CMOs) rely on the most critical sensor in the factory: the inline digital refractometer.
This guide explores the vital importance of real time refractometer gummy monitoring and how inline Brix monitoring prevents catastrophic failures.
Understanding the Refractometer
A refractometer is an optical instrument that measures the "refractive index" of a liquid—how much light bends as it passes through the substance.
- In gummy manufacturing, the more dissolved solids (sugar, polyols, pectin) present in the water, the more the light bends.
- The refractometer translates this light-bending angle instantly into a Degrees Brix (°Bx) reading, giving the operators an exact percentage of Total Soluble Solids (TSS).
Why Real-Time Brix Control is Non-Negotiable
As detailed in our formulation guides, Brix is not just about sweetness; it is the structural foundation of the gummy.
1. Guaranteeing Pectin Gelation
High-Methoxyl (HM) pectin will only gel if the surrounding environment has a high concentration of solids (typically 78% to 82% Brix) to dehydrate the pectin chains and force them together.
- The Continuous Threat: In a continuous cooker, water is being rapidly boiled off under a vacuum. If the flow rate fluctuates and the slurry exits the cooker at 75% Brix, the acid injection will fail to trigger the pectin. The result is thousands of molds filled with liquid syrup that will never set.

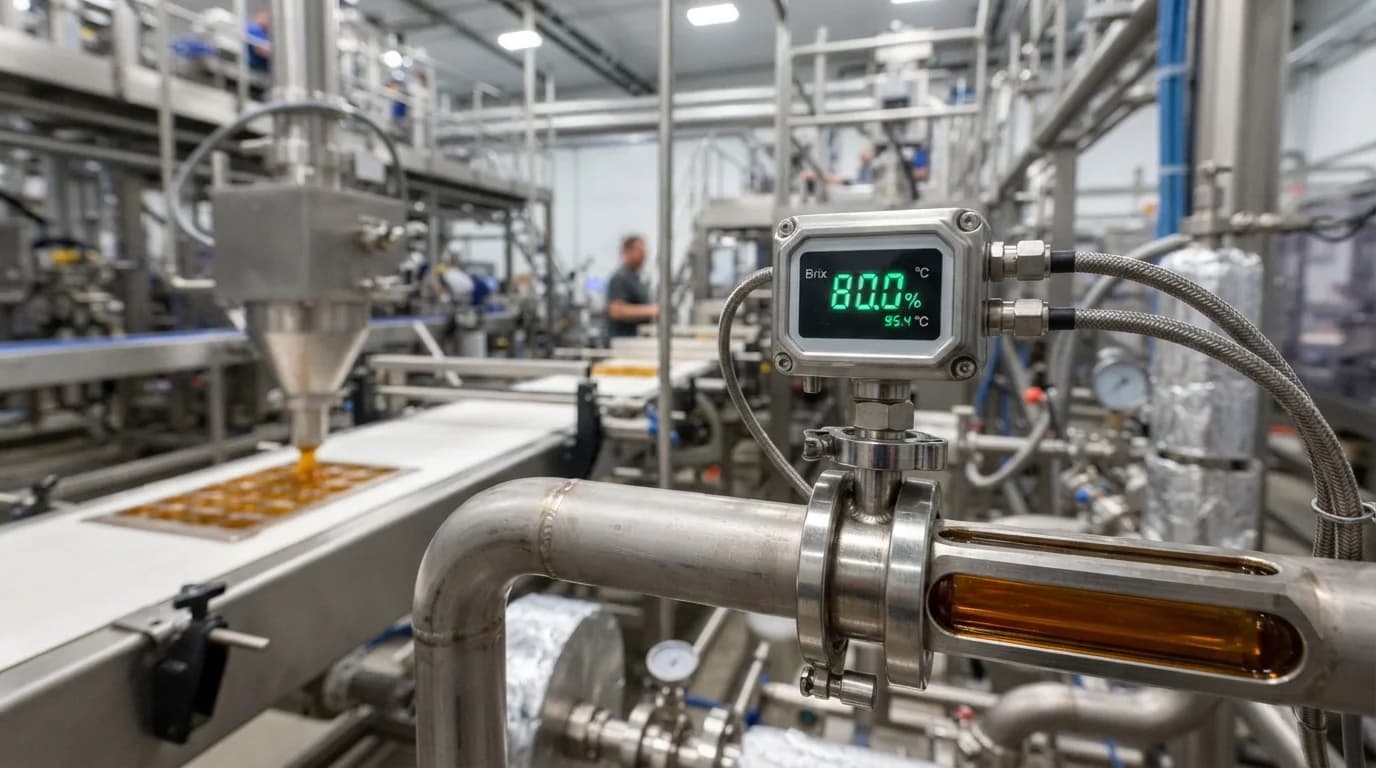

- The Solution: An inline refractometer mounted directly on the exit pipe of the cooker measures the Brix hundreds of times per second. If the Brix dips to 77.9%, the automated PLC system instantly slows the pump or increases the steam pressure to correct the moisture level before the slurry ever reaches the depositing head.
2. Preventing Gummy Syneresis (Weeping)
If the continuous cooker removes too much water, the Brix might spike to 85%.
- While the pectin will set, this extremely high solid concentration creates an intensely tight, rigid matrix. This tight matrix physically squeezes out whatever remaining moisture exists, forcing it to the surface of the gummy.
- This is the primary cause of syneresis (weeping). The gummies will become a sticky, fused mass inside the retail bottle. Real-time monitoring prevents this over-cooking.
3. Protecting Water Activity (aw)
Achieving a low Water Activity (aw < 0.65) is mandatory to prevent mold and bacterial growth over a 24-month shelf life. The primary method of lowering aw is increasing the Brix. By utilizing automated gummy production with inline refractometers, the CMO mathematically guarantees that the solid concentration is high enough to bind the free water, ensuring every single gummy in the million-unit run is microbially safe.
The Probiota Innovations Automation Standard
At Probiota Innovations, we do not rely on human guesswork. We engineer out the risk of human error entirely.
Our continuous starchless mogul lines are heavily instrumented with pharmaceutical-grade, inline digital refractometers. These sensors are integrated directly into our central SCADA (Supervisory Control and Data Acquisition) system. The system autonomously adjusts steam pressure, vacuum levels, and pump speeds in real-time to maintain a perfectly flat Brix curve (e.g., exactly 80.0% ± 0.2%) throughout a 24-hour production run.
This absolute control is what allows us to produce visually stunning, perfectly textured, and flawlessly stable pectin gummies for the global market.
Discover our Highly Automated Manufacturing Capabilities
Frequently Asked Questions (FAQ)
1. How do you calibrate an inline refractometer? Inline refractometers are highly sensitive optical devices. They must be calibrated regularly against known, certified standard solutions (e.g., a liquid certified to be exactly 80.0% Brix) provided by accredited laboratories. During an FDA or TGA audit, inspectors will demand to see the calibration logs for these specific sensors.
2. Does temperature affect the Brix reading? Yes, significantly. As a liquid heats up, its density changes, which changes how it bends light. Modern digital refractometers possess internal temperature compensation algorithms. They measure the exact temperature of the boiling slurry and mathematically adjust the Brix reading to provide an accurate "standardized" measurement.
3. Can you use a refractometer for sugar-free gummies? Yes. While Brix was originally designed to measure sucrose (sugar), a refractometer measures all dissolved solids. It will accurately measure the concentration of Maltitol, Erythritol, Allulose, or soluble fibers, ensuring the sugar-free matrix achieves the structural density required for gelation and stability.
4. What happens if the refractometer lens gets dirty from the sticky gummy syrup? This is a major engineering challenge. If the sapphire lens gets coated in burned sugar, it will give false readings. Premium inline refractometers used in continuous gummy lines feature automated "prism wash" systems that use high-pressure steam or hot water to instantly blast the lens clean every few minutes without interrupting the production flow.
