High-Shear Mixing for Botanical Powders: Ensuring Homogeneity in Gummy Slurries

Formulating a gummy with a powerful botanical extract like Ashwagandha, Maca, or Turmeric sounds straightforward on paper. However, translating that formula to the production floor introduces a massive fluid dynamics challenge.

Botanical extracts are typically supplied as fine, dense, hydrophobic (water-repelling) powders. The gummy base is a thick, highly viscous, boiling aqueous syrup. When you drop a hydrophobic powder into a viscous syrup, it does not dissolve. It clumps, floats, or sinks.

If a Contract Manufacturing Organization (CMO) fails to achieve perfect botanical powder homogeneity, the resulting gummies will fail FDA assay testing and poison the brand's reputation. This guide explores the absolute necessity of high shear mixing gummies manufacturing to solve this crisis.

---

The Threat of Heterogeneity (Clumping)

In the pharmaceutical and nutraceutical world, "homogeneity" means the active ingredient is perfectly and evenly distributed throughout the entire batch.

• The "Fish-Eye" Phenomenon: If a CMO uses a standard paddle mixer (low shear) to stir botanical powder into a gummy slurry, the powder particles instantly clump together. The outside of the clump hydrates, forming a tough, waterproof shell that prevents the dry powder inside from mixing. These dry clumps are called "fish-eyes."
• The Regulatory Failure: If fish-eyes exist in the slurry, the depositing machine will shoot inconsistent amounts of powder into the molds.
  • Gummy #1 might contain 0mg of Ashwagandha (failing the label claim).
  • Gummy #2 might contain a massive, unchewable fish-eye containing 2,000mg of Ashwagandha (a toxic overdose).
  • When the FDA or TGA tests the batch, the massive variance will result in immediate failure and product recall.

---

The Engineering Solution: High-Shear Mixing

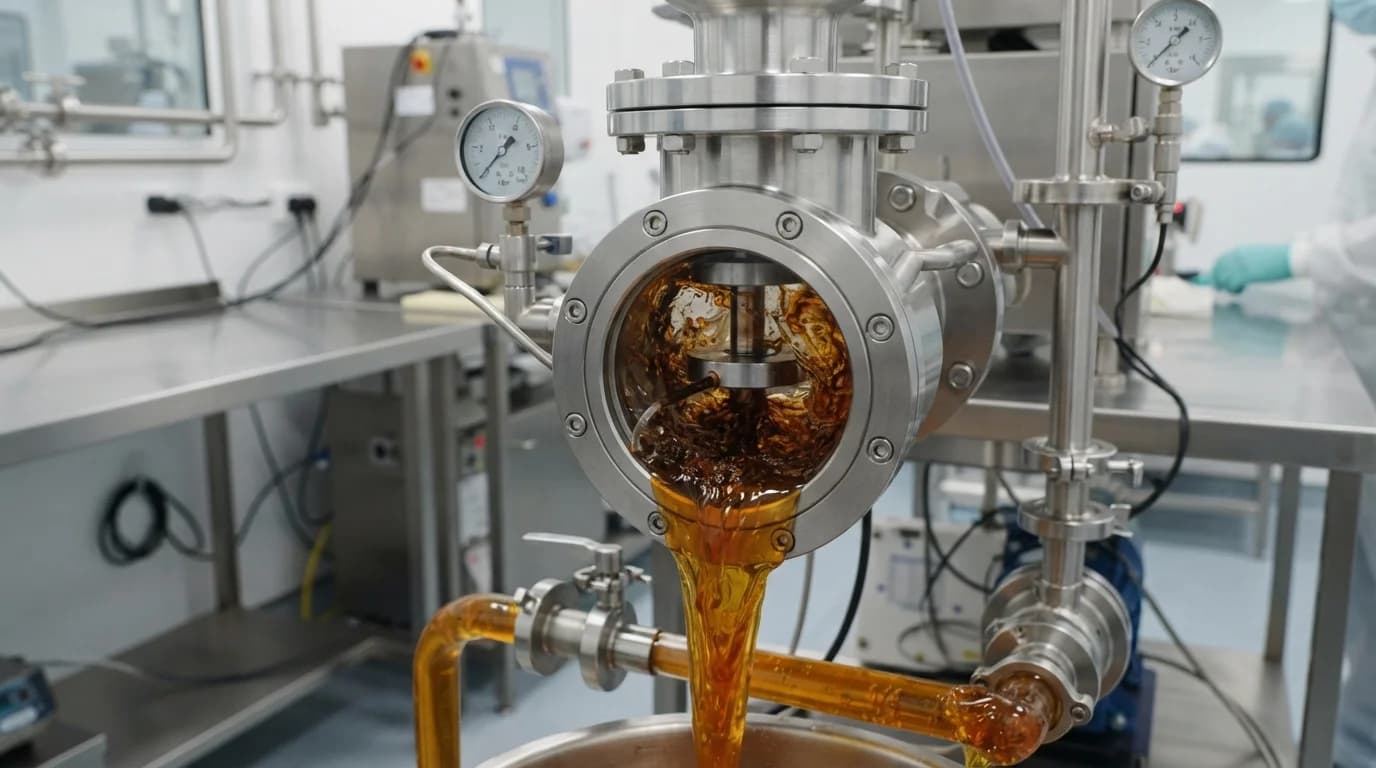

To force a hydrophobic botanical powder to fully disperse into a thick pectin slurry, you cannot just stir it; you must physically tear the powder clumps apart. This requires a High-Shear Mixer (often an inline rotor-stator homogenizer).

How High-Shear Mixing Works

1. The Rotor and Stator: The mixer consists of a rapidly spinning rotor (often exceeding 3,000 RPM) positioned incredibly close (fractions of a millimeter) to a stationary stator (a metal screen with precision-cut holes).
2. The Mechanical Tearing: The viscous gummy slurry mixing is drawn into the center of the rotor and violently expelled outward through the holes in the stator.
3. The Result: As the fluid and the botanical powder clumps are forced through this microscopic gap at high velocity, they are subjected to immense mechanical and hydraulic shear forces. The clumps are literally ripped apart down to the micron level, forcing the botanical particles to disperse evenly throughout the syrup.

---

The delicate Balance of Shear

While high shear is mandatory for preventing gummy clumping, it introduces a new set of risks that separate amateur CMOs from elite facilities.

• Polymer Degradation (Breaking the Pectin): High-Methoxyl (HM) pectin is a long carbohydrate chain. If the high-shear mixer is run too fast or for too long, the immense mechanical force will physically slice the pectin chains in half. If the pectin chains are broken, they cannot form a gel, and the gummy will not set.
• Microencapsulation Destruction: If the formulation utilizes microencapsulated probiotics (delicate lipid shells), passing them through a high-shear mixer will shred the protective coating, exposing and killing the bacteria.

The Staged Addition Strategy

Elite CMOs solve this through staged manufacturing.

1. The botanical powders are added to a smaller volume of the liquid syrup and passed through the high-shear inline mixer to create a perfectly homogenous "pre-mix" or paste.
2. The delicate ingredients (pectin, microencapsulated probiotics) are added to the main tank and mixed using low-shear, scraped-surface agitators to protect their integrity.
3. The highly sheared botanical pre-mix is then gently folded into the main tank just before depositing.

---

Precision Engineering with Probiota Innovations

At Probiota Innovations, we guarantee homogeneity. We do not rely on visual inspections to confirm our botanicals are mixed.

Our continuous functional gummy manufacturing lines utilize state-of-the-art inline rotor-stator homogenizers. Our process engineers mathematically calibrate the exact shear rate (RPM and duration) required to perfectly disperse dense botanical powders without degrading the delicate pectin polymer structure. This ensures that every single gummy in a million-unit run delivers the exact clinical dose promised on your label, guaranteeing FDA and TGA assay compliance.

Discover our Advanced Mixing and Manufacturing Capabilities

---

Frequently Asked Questions (FAQ)

1. Is mixing oil into a gummy the same as mixing powder? The goal is the same (homogeneity), but the mechanism is different. Mixing an oil (like Omega-3) into a water-based gummy slurry requires creating an emulsion. A high-shear mixer is still used, but it must be paired with an emulsifying agent (like sunflower lecithin) to force the oil and water to bind together without separating.

2. Can you taste a poorly mixed gummy? Absolutely. If a gummy contains a botanical "fish-eye" clump, biting into it will release an intense, highly concentrated burst of bitter, dry powder, completely ruining the consumer experience.

3. Does high-shear mixing introduce air bubbles into the gummy? Yes, it can. Rapidly spinning blades create a vortex that pulls air into the thick slurry. If not removed, these air bubbles make the gummy look cloudy and unappealing. This is why high-shear mixing is almost always followed by a "de-aeration" phase, where the slurry is subjected to a strong vacuum to pull the bubbles out before depositing.

4. How do auditors check for homogeneity? During an FDA or TGA audit, inspectors will review the CMO's Validation Reports. The CMO must prove that they took samples from the beginning, middle, and end of a massive commercial run and tested them via HPLC (High-Performance Liquid Chromatography). If all samples show the exact same level of active ingredient, the mixing process is validated as homogenous.

---
